Supplies

A list of all equipments you will be needing for the basic projects mentioned in this blog (in process)

  • Arduino Uno R3 with USB cable

  • Solderless Breadboard

  • Jumper Wires (10 cm)

  • Jumper Cables (70 cm)

  • NodeMCU Lua ESP8266 ESP-12F Development Board with Wifi Module (for IOT projects)

  • Breadboard Power Supply Module

  • Ethernet Shield W5100 (for IOT projects)

  • LEDs (Light Emitting Diodes)

  • Resistors

  • Push-Buttons (Mechanical Switch)

  • Capacitors

  • Relay Module

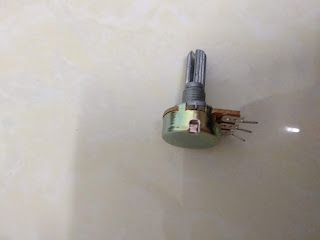

  • Potentiometer

  • RGB LED (common anode)

  • LDR (Light Dependent Resistor)

  • MC-38 Wired Door/ Window sensor magnetic switch

  • Flame sensor

  • DH11 Temperature and Humidity sensor

  • Soil moisture sensor
